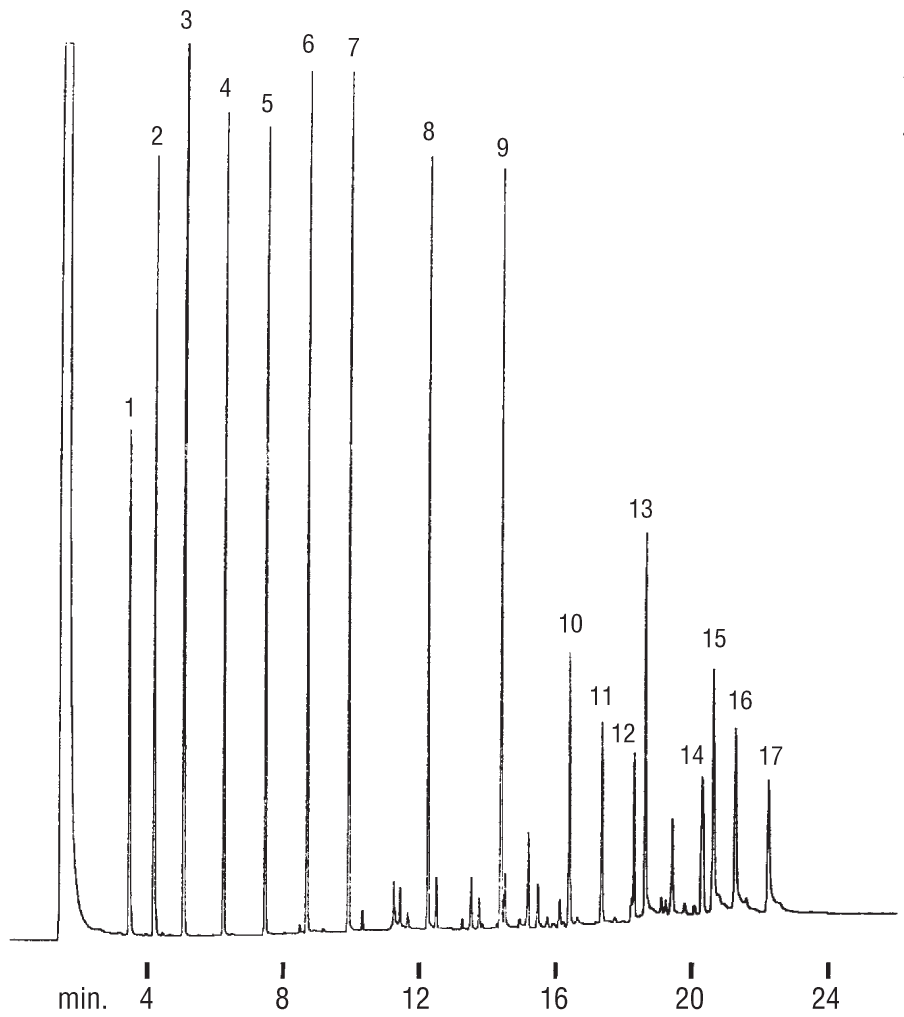

Organic Acids Free Fatty Acids on Stabilwax-DA

GC_CH00283
Peaks
1.C2:0 - Acetic acid
2.C3:0 - Propionic acid
3.C4:0 - Butyric acid
4.C5:0 - Valeric acid
5.C6:0 - Caproic acid
6.C7:0 - Enanthic acid
7.C8:0 - Caprylic acid
8.C10:0 - Capric acid
Peaks
9.C12:0 - Lauric acid
10.C14:0 - Myristic acid
11.C15:0 - Pentadecanoic acid
12.C16:0 - Palmitic acid
13.C16:1 - Palmitoleic acid
14.C18:0 - Stearic acid
15.C18:1 - Oleic acid
16.C18:2 - Linoleic acid
17.C18:3 - Linolenic acid
ColumnStabilwax-DA, 30 m, 0.53 mm ID, 0.25 µm (cat.# 11025)
Standard/Sample
Conc.:5 mg/mL
Injection
Inj. Vol.:0.5 µL Direct
Inj. Temp.:280 °C
Oven
Oven Temp.:100 °C (hold 2 min) to 250 °C at 8 °C/min
Carrier GasHe, constant flow
Linear Velocity:40 cm/sec
DetectorFID @ 280 °C
NotesFlow rate: 5.2 cc/min
FID sensitivity: 8 x 10-11 AFS
