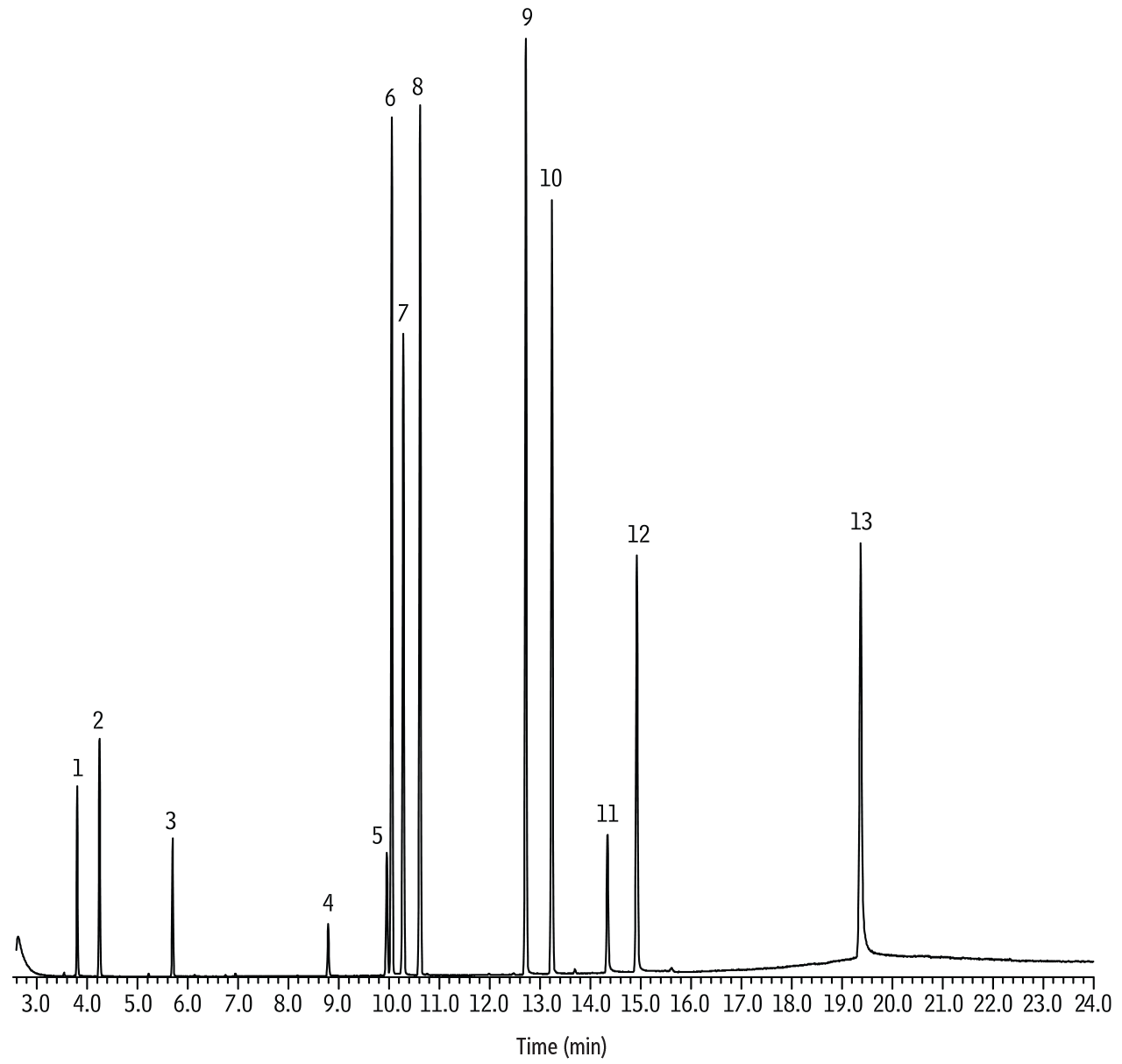

Basic Drugs (Underivatized) on Rxi-5ms

ColumnRxi-5ms, 30 m, 0.25 mm ID, 0.25 µm (cat.# 13423)
Standard/Sample1000 μg/mL each
Conc.:20 ng each compound on column
Inj. Vol.:1.0 µL split (split ratio 50:1)
Liner:4 mm ID single taper inlet liner, Siltek deactivation (cat.# 20799-214)
Inj. Temp.:250 °C
Oven Temp.:100 °C to 220 °C at 15 °C/min to 330 °C at 10 °C/min (hold 5 min)
Carrier GasHe, constant pressure
Linear Velocity:30 cm/sec
DetectorAgilent 5973 MSD
Transfer Line Temp.:300 °C
Analyzer Type:Quadrupole
Tune Type:PFTBA
Ionization Mode:EI
Scan Range:35-550 amu
