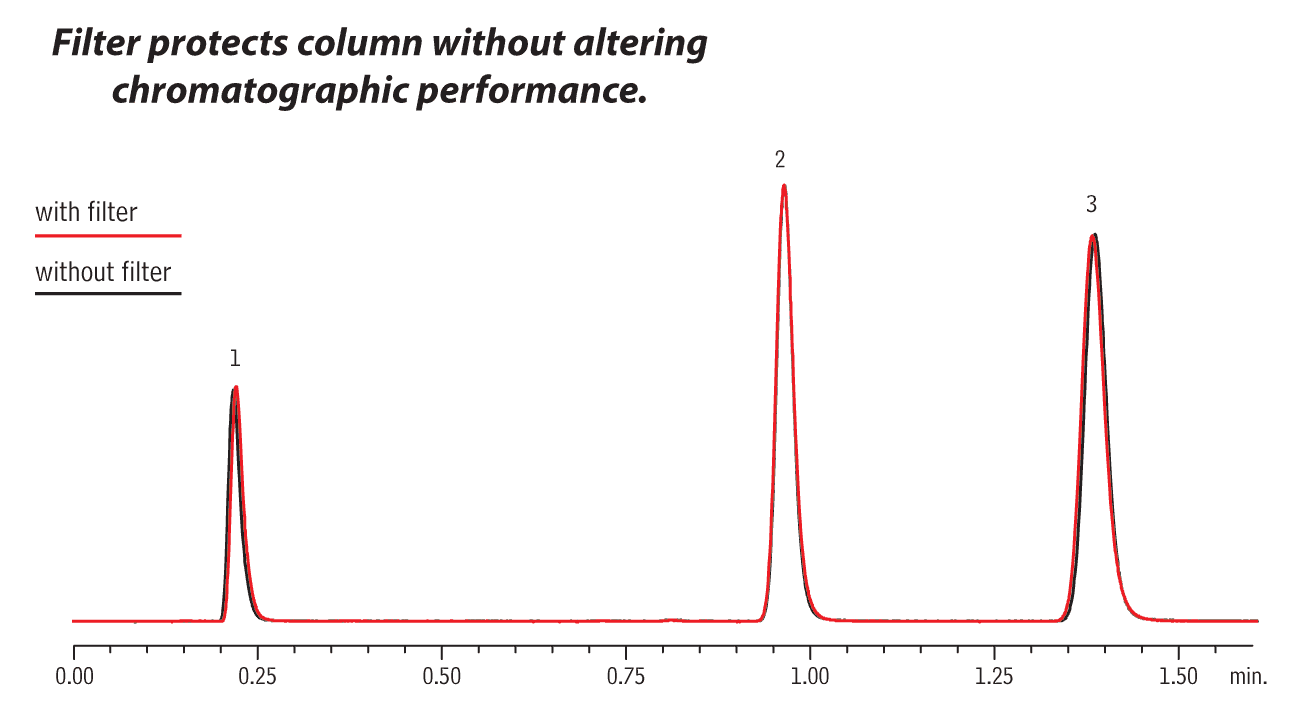

UltraShield UHPLC Filters Protect Analytical Columns

LC_GN0518

	Peaks	t_R (min)	Conc. (mg/mL)
1.	Uracil	0.219	0.02
2.	Naphthalene	0.961	0.5
3.	Biphenyl	1.38	0.06

Standard/Sample
Column	Pinnacle DB C18 (cat.# 9414252)
Dimensions:	50 mm x 2.1 mm ID
Particle Size:	1.9 µm
Pore Size:	140 Å

Temp.:	30 °C
Diluent:	Mobile phase
Inj. Vol.:	0.5 µL
Mobile Phase	Water:Acetonitrile (45:55)
Flow:	0.6 mL/min

Detector	UV/Vis @ 254 nm
Cell Temp:	30 °C
Instrument	Shimadzu UFLCXR
Notes	UltraShield Precolumn Filter (cat.# 24996)
