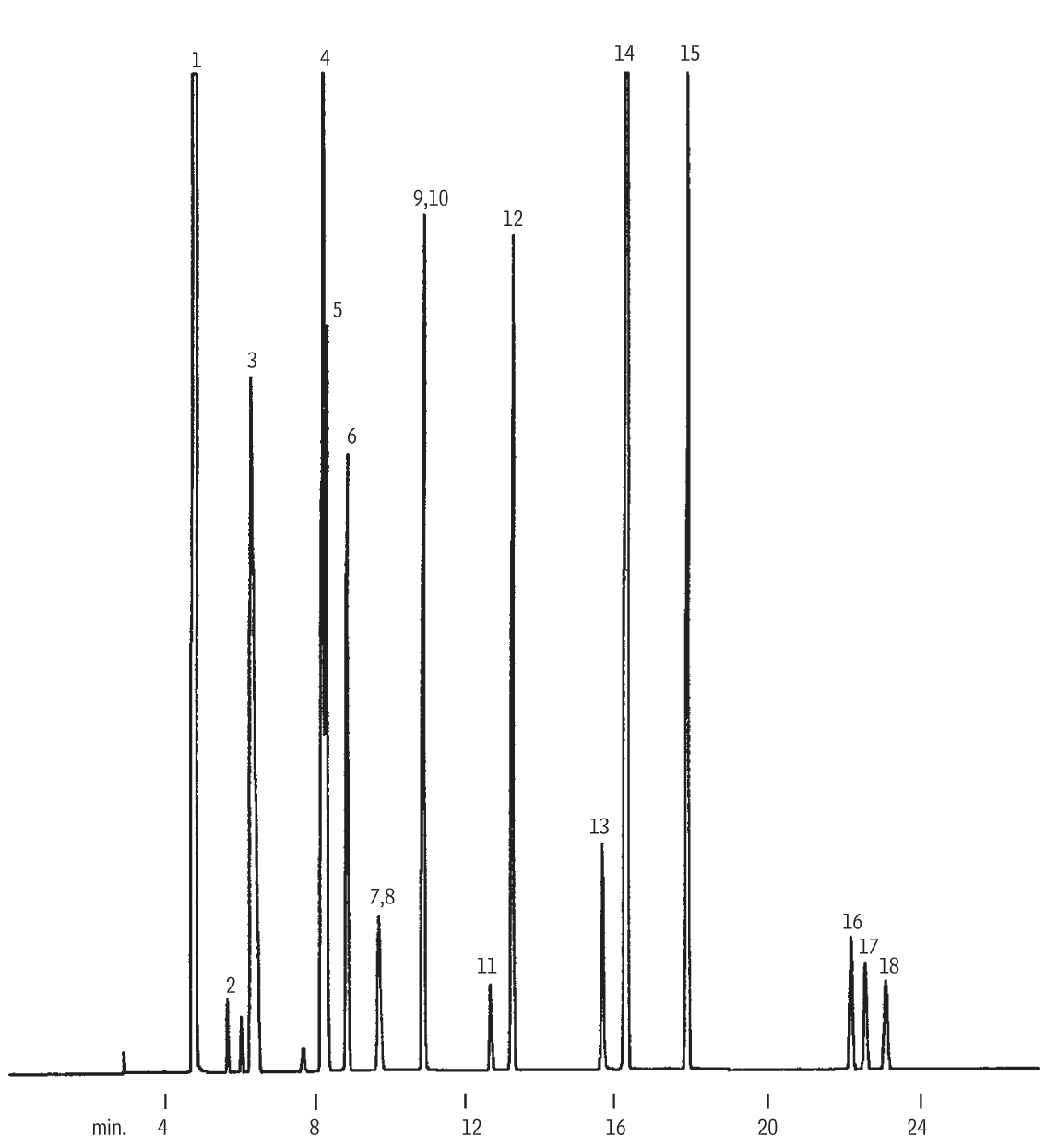

Solvents on Rtx-5

Injection
Column	Rtx-5, 60 m, 0.32 mm ID, 3.00 µm (cat.# 10287)
Standard/Sample	solvents collected on a charcoal tube and extracted in carbon disulfide
Inj. Vol.:	1.0 µL split
Inj. Temp.:	300 °C
Oven
Oven Temp.:	50 °C (hold 4 min) to 120 °C at 5 °C/min (hold 20 min)
Carrier Gas	H₂, constant pressure
Linear Velocity:	40 cm/sec @ 50 °C

Detector	FID @ 300 °C
Notes	FID sensitivity: 128 x 10^-12 AFS
Acknowledgement	Permission to publish this chromatogram granted by Kenda McCoy, Rexham Industrial.
