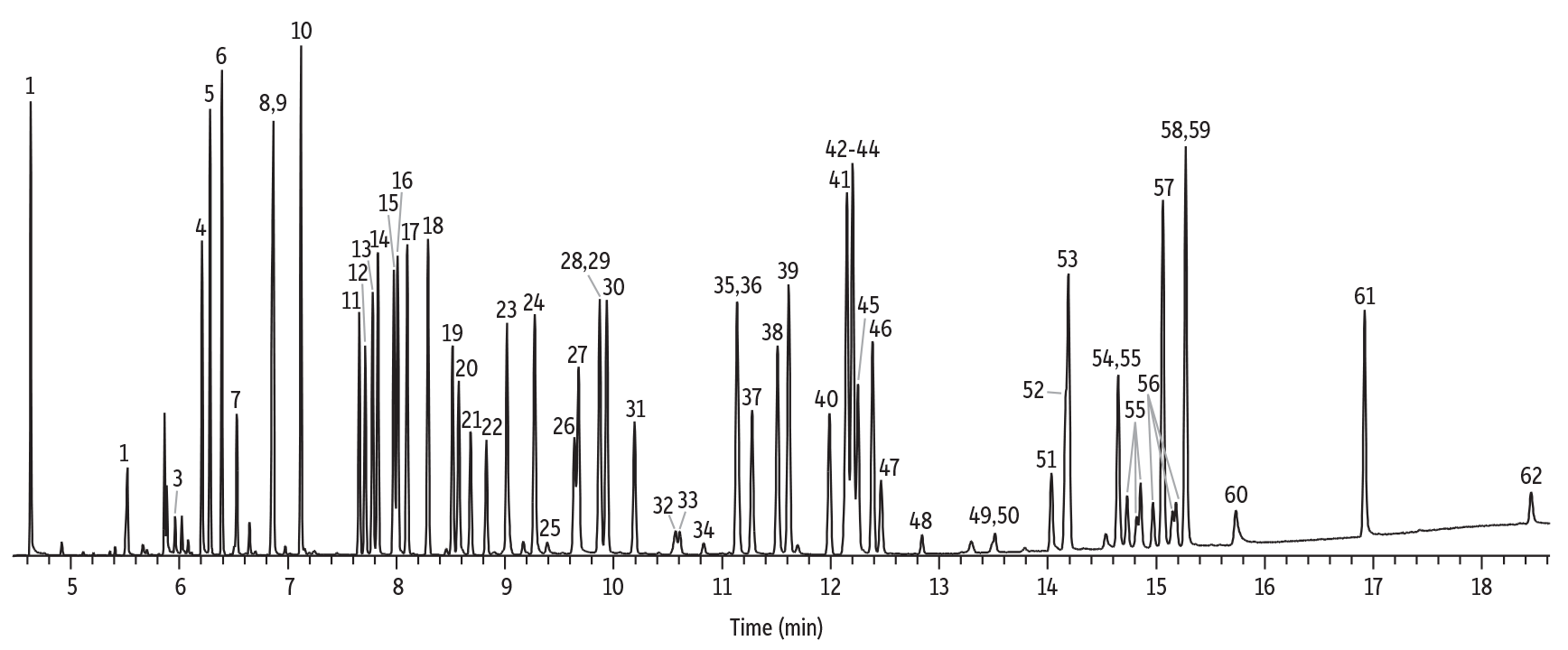

Oregon Pesticides on Rxi-5ms

	Peaks	t_R (min)	Conc. (µg/mL)	Mix
1.	Dichlorvos	4.63	60	32591
2.	Acephate	5.52	60	32591
3.	Oxamyl	5.97	60	32588
4.	Flonicamid	6.21	60	32588
5.	Propoxur	6.29	60	32589
6.	Ethoprophos	6.39	60	32591
7.	Naled	6.53	60	32591
8.	Dimethoate	6.86	60	32591
9.	Carbofuran	6.87	60	32589
10.	Diazinon	7.12	60	32591
11.	Spiroxamine 1	7.66	60	32587
12.	Methyl parathion	7.71	60	32591
13.	Carbaryl	7.79	60	32589
14.	Metalaxyl	7.83	60	32587
15.	Spiroxamine 2	7.98	60	32587
16.	Methiocarb	8.02	60	32588
17.	Malathion	8.10	60	32591
18.	Chlorpyrifos	8.29	60	32591
19.	MGK-264 1	8.52	60	32587
20.	Thiamethoxam	8.58	60	32588
21.	MGK-264 2	8.68	60	32587
22.	Fipronil	8.84	60	32588
23.	Prallethrin	9.02	60	32590
24.	Paclobutrazol	9.28	60	32589
25.	Imidacloprid	9.40	60	32586
26.	Imazalil	9.65	60	32589
27.	Fludioxonil	9.69	60	32587
28.	Myclobutanil	9.88	60	32589
29.	Cinerin I	9.88	60	32590
30.	Kresoxim-methyl	9.94	60	32587
31.	Chlorfenapyr	10.19	60	32587

	Peaks	t_R (min)	Conc. (µg/mL)	Mix
32.	Jasmolin I	10.58	60	32590
33.	Pyrethrin I	10.61	60	32590
34.	Pyrethrin I	10.83	60	32590
35.	Trifloxystrobin	11.14	60	32587
36.	Propiconazole 1	11.14	60	32589
37.	Propiconazole 2	11.28	60	32589
38.	Tebuconazole	11.52	60	32589
39.	Piperonyl butoxide	11.62	60	32587
40.	Spiromesifen	12.00	60	32587
41.	Fenoxycarb	12.16	60	32589
42.	Acetamiprid	12.19	60	32587
43.	Phosmet	12.20	60	32591
44.	Bifenthrin	12.21	60	32590
45.	Bifenazate	12.25	60	32587
46.	Etoxazole	12.40	60	32587
47.	Chlorantraniliprole fragment	12.47	60	32589
48.	Cinerin II	12.84	60	32590
49.	Jasmolin II	13.49	60	32590
50.	Pyrethrin II	13.51	60	32590
51.	cis-Permethrin	14.03	60	32590
52.	trans-Permethrin	14.16	60	32590
53.	Pyridaben	14.20	60	32588
54.	Spirotetramat	14.65	60	32586
55.	Cyfluthrin	14.65-14.85	60	32590
56.	Cypermethrin	14.97-15.18	60	32590
57.	Boscalid	15.07	60	32587
58.	Acequinocyl	15.28	60	32586
59.	Etofenprox	15.28	60	32590
60.	Thiacloprid	15.73	60	32588
61.	Azoxystrobin	16.93	60	32587
62.	Chlorantraniliprole fragment	18.45	60	32589

Injection
Column	Rxi-5ms, 30 m, 0.25 mm ID, 0.25 µm (cat.# 13423)
Standard/Sample	Oregon pesticides standard #1 (cat.# 32586)
	Oregon pesticides standard #2 (cat.# 32587)
	Oregon pesticides standard #3 (cat.# 32588)
	Oregon pesticides standard #4 (cat.# 32589)
	Oregon pesticides standard #5 (cat.# 32590)
	Oregon pesticides standard #6 (cat.# 32591)


Diluent:	Acetonitrile
Conc.:	60 µg/mL
Inj. Vol.:	1 µL splitless (hold 0.5 min)
Liner:	Topaz 4.0 mm ID single taper inlet liner w/wool (cat.# 23447)
Inj. Temp.:	250 °C
Purge Flow:	5 mL/min
Oven
Oven Temp.:	70 °C (hold 1 min) to 220 °C at 30 °C/min to 240 °C at 5 °C/min to 315 °C at 10 °C/min (hold 10 min)
Carrier Gas	He, constant flow
Flow Rate:	1.4 mL/min

Detector

Thermo TSQ8000

Scan Program:

Group	Start Time (min)	Scan Range (amu)	Scan Rate (scans/sec)
1	2.5	55-550	10

Transfer Line Temp.:

290 °C

Analyzer Type:

Quadrupole

Source Temp.:

330 °C

Solvent Delay Time:

2.5 min

Tune Type:

PFTBA

Ionization Mode:

Sample Preparation

100 µL of each standard was combined with 400 µL acetonitrile (final volume 1 mL) for a final concentration of 60 ppm. The sample was pipetted into a 2 mL short-cap, screw-thread vial (cat.# 21143) and capped with a short-cap, screw-vial closure (cat.# 24495).

Notes

Some compounds traditionally analyzed by LC were not GC amenable and/or only fragments were detected. These compounds, and the mixes that contain them, are:
Abamectin (32586)
(E)-Fenpyroximate (32586)
Spinosad (32586)
Aldicarb (32588)
Hexythiazox (32588)
Thiacloprid (32588)
Clofentezine (32589)
Daminozide (32589)
