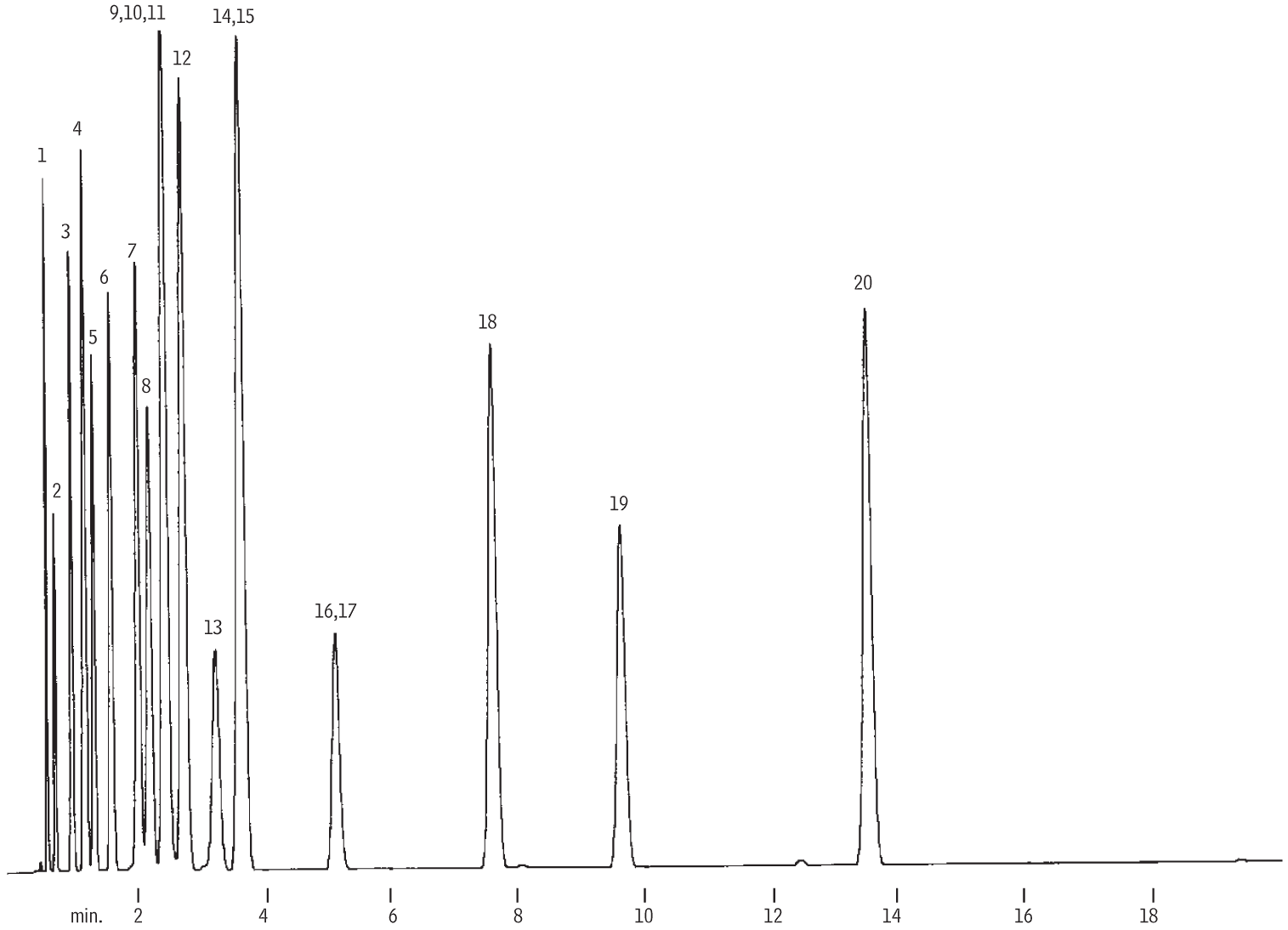

Solvents on Rtx-1

GC_CH00344
Peaks
1.Methanol
2.Methyl formate
3.Acetone
4.Pentane
5.Methylene chloride
6.n-Propyl alcohol
7.Methyl ethyl ketone
8.sec-Butyl alcohol
9.Ethyl acetate
10.Chloroform
Peaks
11.Hexane
12.Tetrahydrofuran
13.1,1,1-Trichloroethane
14.Isobutyl alcohol
15.Benzene
16.n-Butyl alcohol
17.Ethoxyethane
18.Toluene
19.n-Butyl acetate
20.o-Xylene
ColumnRtx-1, 30 m, 0.53 mm ID, 5.00 µm (cat.# 10179)
Standard/SampleSolvent mix
InjectionDirect
Liner:Uniliner liner
Inj. Temp.:250 °C
Oven
Oven Temp.:40 °C (hold 4 min) to 110 °C at 4 °C/min to 175 °C at 15 °C/min (hold 5 min)
Carrier GasH2, constant flow
Linear Velocity:80 cm/sec
DetectorFID @ 250 °C
Notes0.5 mg/mL wet needle injection
Flow rate: 10 cc/min
FID sensitivity: 64 x 10-11 AFS
