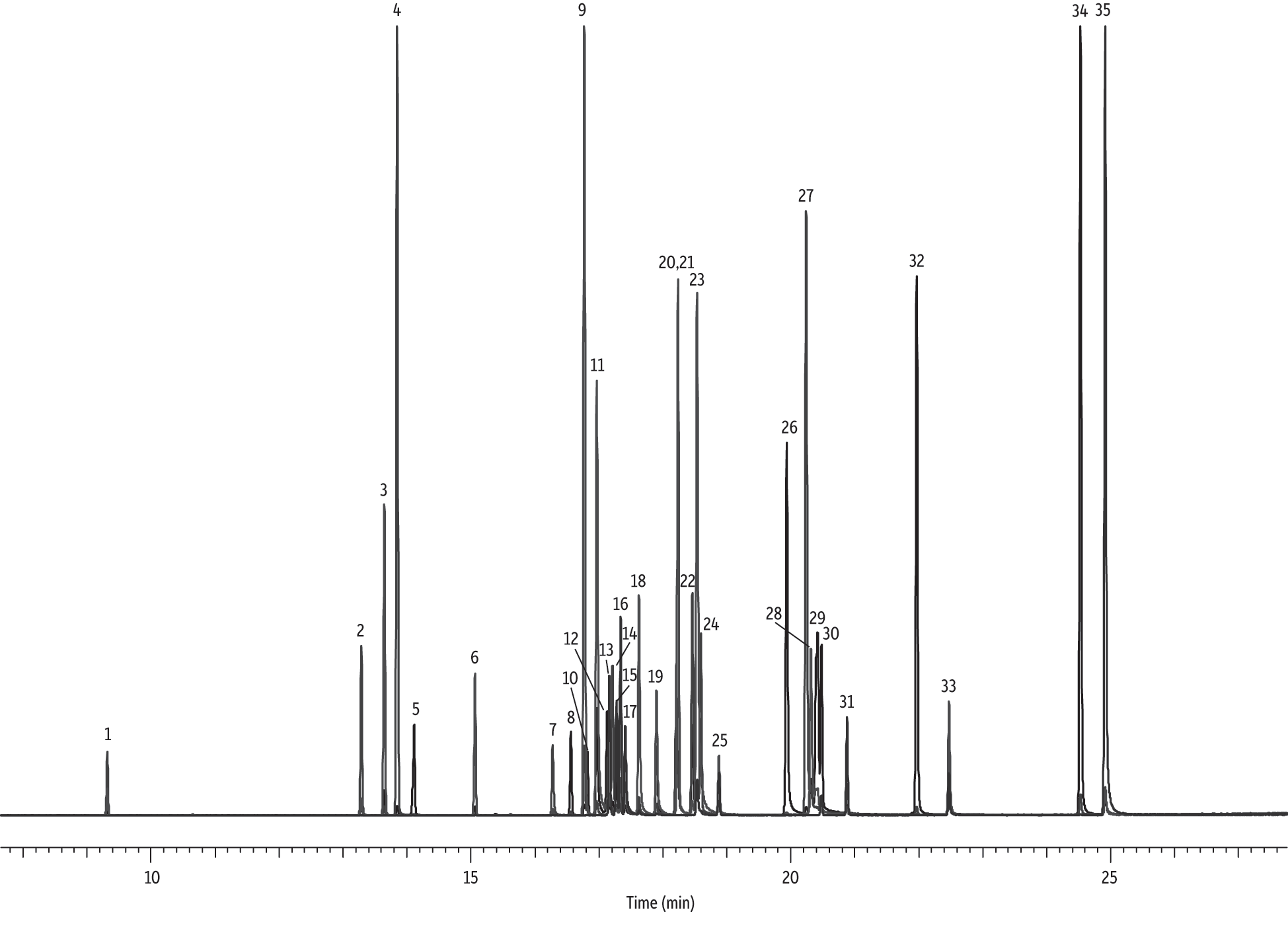

GC Multiresidue Pesticide Standard #5-ONP on Rxi-5ms by GC-MS

	Peaks	t_R (min)
1.	Etridiazole	9.31
2.	Atrazine	13.29
3.	Terbuthylazine	13.64
4.	Pyrimethanil	13.85
5.	Terbacil	14.11
6.	Vinclozolin	15.06
7.	Triadimefon	16.28
8.	MGK 264 1*	16.56
9.	Cyprodinil	16.77
10.	MGK 264 2*	16.82
11.	Penconazole	16.97

	Peaks	t_R (min)
12.	Captan	17.13
13.	Fipronil	17.17
14.	Triadimenol	17.21
15.	Folpet	17.28
16.	Procymidone	17.34
17.	Triflumizole	17.41
18.	Paclobutrazol	17.63
19.	Flutriafol	17.90
20.	Tricyclazole (Beam)	18.21
21.	Fludioxonil	18.24
22.	Myclobutanil	18.46

	Peaks	t_R (min)
23.	Flusilazole	18.53
24.	Bupirimate	18.59
25.	Chlorfenapyr	18.88
26.	Lenacil	19.94
27.	Hexazinone (Velpar)	20.24
28.	Tebuconazole	20.31
29.	Propargite	20.42
30.	Captafol	20.48
31.	Iprodione	20.88
32.	Pyriproxyfen	21.97
33.	Fenarimol	22.47
34.	Etofenprox	24.53
35.	Fluridone (Sonar)	24.92

*MGK-264 isomers numbered according to elution order.

Injection
Column	Rxi-5ms, 30 m, 0.25 mm ID, 0.25 µm (cat.# 13423)
Standard/Sample	GC multiresidue pesticide standard #5-ONP (cat.# 32567)
Diluent:	Toluene
Conc.:	100 µg/mL
Inj. Vol.:	1 µL split (split ratio 50:1)
Liner:	Premium 4.0 mm ID Precision inlet liner w/wool (cat.# 23305.1)
Inj. Temp.:	250 °C
Oven
Oven Temp.:	90 °C (hold 1 min) to 330 °C at 8.5 °C/min (hold 5 min)
Carrier Gas	He, constant flow
Flow Rate:	1.4 mL/min

Detector

Mode:

Scan

Scan Program:

Group	Start Time (min)	Scan Range (amu)	Scan Rate (scans/sec)
1	5	55-550	7

Transfer Line Temp.:

290 °C

Analyzer Type:

Quadrupole

Source Temp.:

325 °C

Electron Energy:

70 eV

Solvent Delay Time:

5 min

Ionization Mode:

Instrument

Thermo Scientific TSQ 8000 Triple Quadrupole GC-MS

Notes

• Reconstructed chromatogram from select ions.
• Propargite isomers are only slightly resolved with this method, so they are treated as one peak, but individual retention times are 20.40 and 20.42 min.
• The reference standard is also available as part of Restek’s 200+ compound GC multiresidue pesticide kit (cat.# 32562).
