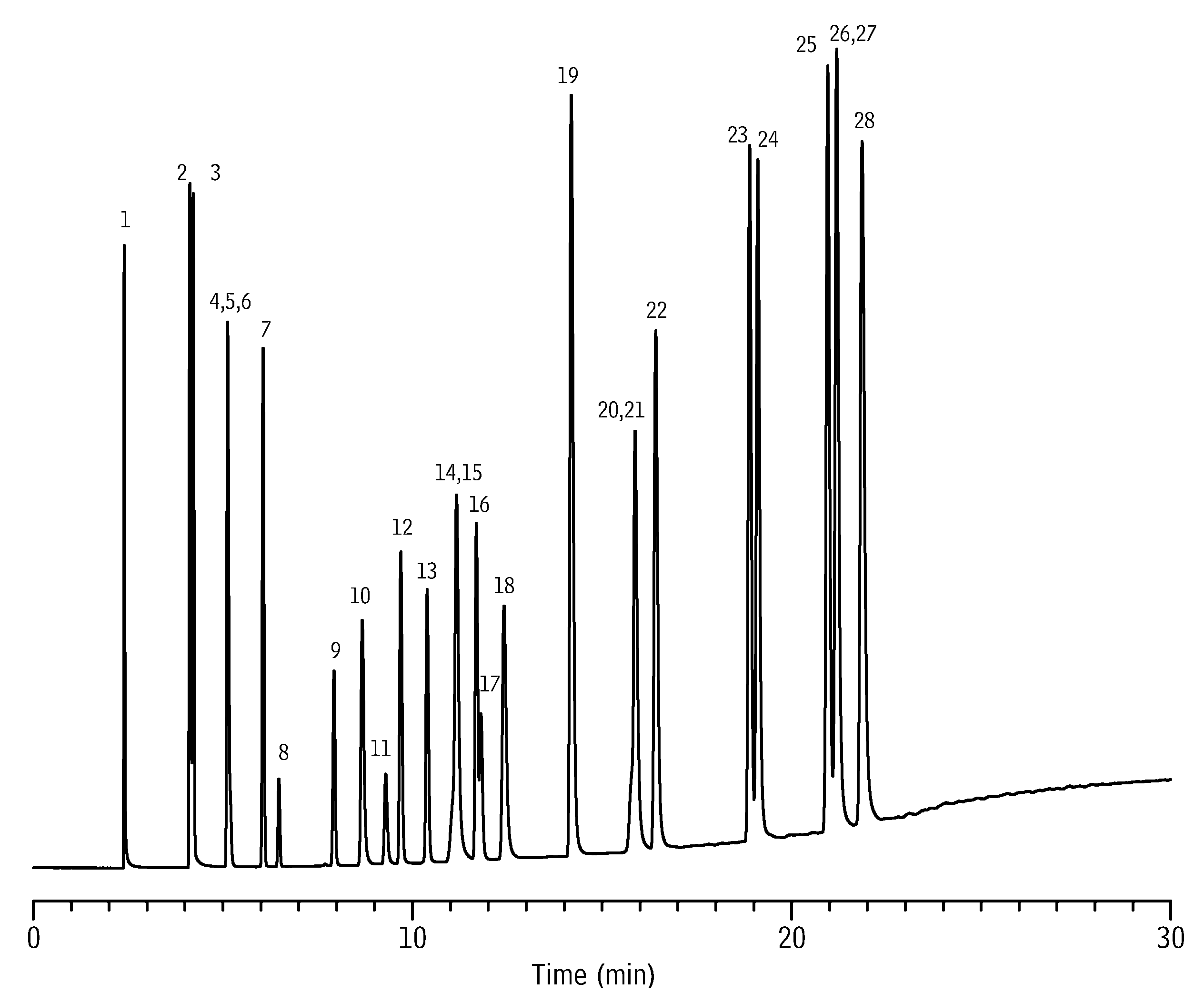

Solvent Mixture on Rt-QS-BOND

GC_PC01081

	Peaks
1.	Methanol
2.	Ethanol
3.	Acetonitrile
4.	Acetone
5.	Dichloromethane
6.	1,1-Dichloroethene
7.	Nitromethane
8.	trans-1,2-Dichloroethylene
9.	cis-1,2-Dichloroethylene
10.	Tetrahydrofuran
11.	Chloroform
12.	Ethyl acetate
13.	1,2-Dichloroethane
14.	1,1,1-Trichloroethane

	Peaks
15.	Benzene
16.	1,2-Dimethoxyethane
17.	Trichloroethylene
18.	1,4-Dioxane
19.	Pyridine
20.	Dimethylformamide
21.	Methylcyclohexane
22.	Toluene
23.	2-Hexanone
24.	Chlorobenzene
25.	Ethylbenzene
26.	m-Xylene
27.	p-Xylene
28.	o-Xylene

Injection
Column	Rt-QS-BOND, 30 m, 0.53 mm ID, 20 µm (cat.# 19738)
Standard/Sample	Solvent mixture
Inj. Vol.:	1.0 µL split
Liner:	Splitless taper (4 mm) (cat.# 20798)
Inj. Temp.:	200 °C
Split Vent Flow Rate:	100 ml/min
Oven
Oven Temp.:	120 °C to 240 °C at 5 °C/min (hold 5.0 min)
Carrier Gas	H₂, constant pressure (4.2 psi, 29.0 kPa)
Linear Velocity:	40 cm/sec @ 120 °C

Detector	FID @ 240 °C
