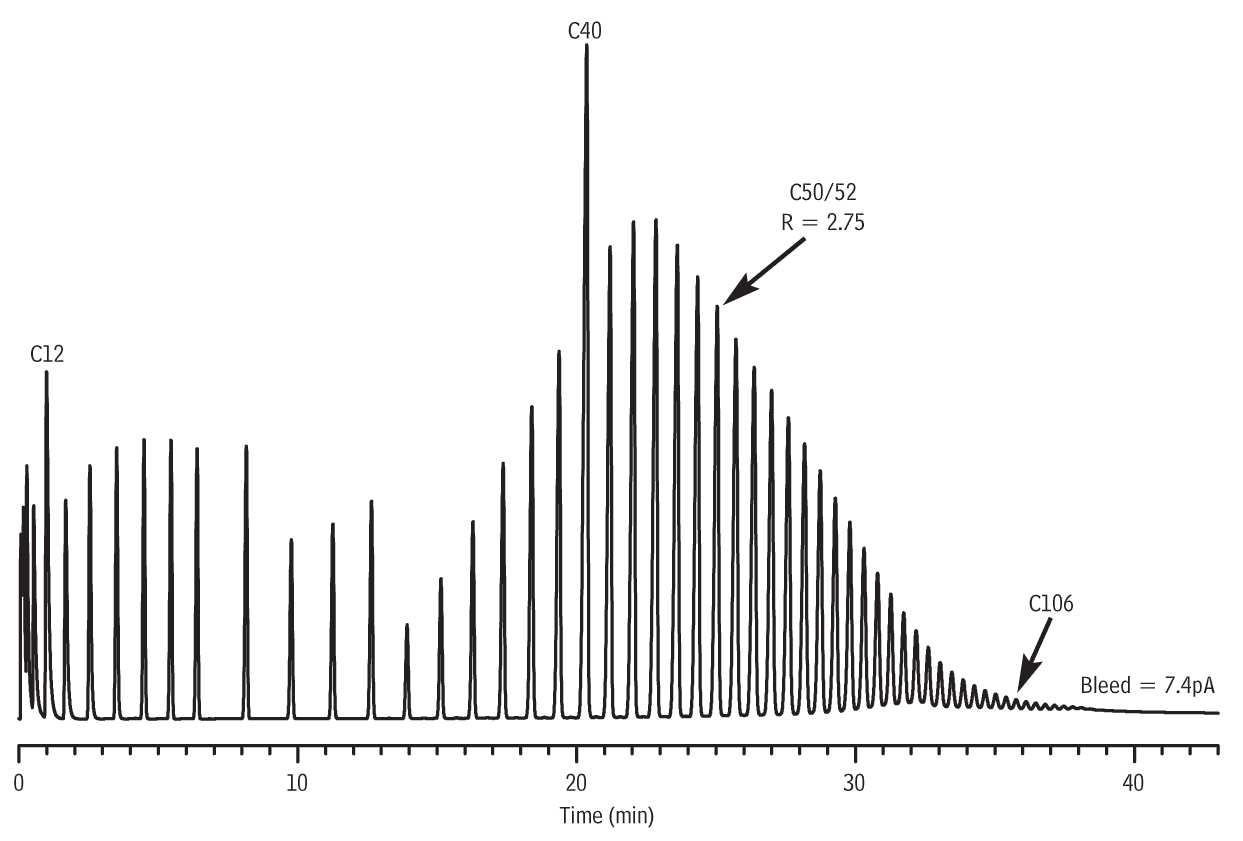

Hydrocarbons (C5-C106) on MXT-1HT SimDist at 430 °C

GC_PC1165

	Peaks	t_R (min)
1.	--	--
2.	--	--
3.	--	--
4.	--	--
5.	--	--
6.	--	--
7.	--	--
8.	C12	0.988
9.	C13	1.677
10.	C14	2.544
11.	C15	3.503
12.	C16	4.484
13.	C17	5.451
14.	C18	6.386
15.	C20	8.15
16.	C22	9.764
17.	C24	11.259
18.	C26	12.645
19.	C28	13.920

	Peaks	t_R (min)
20.	C30	15.134
21.	C32	16.280
22.	C34	17.364
23.	C36	18.392
24.	C38	19.371
25.	C40	20.363
26.	C42	21.199
27.	C44	22.041
28.	C46	22.843
29.	C48	23.609
30.	C50	24.340
31.	C52	25.041
32.	C54	25.712
33.	C56	26.365
34.	C58	26.990
35.	C60	27.594
36.	C62	28.173
37.	C64	28.733
38.	C66	29.274

	Peaks	t_R (min)
39.	C68	29.797
40.	C70	30.303
41.	C72	30.789
42.	C74	31.265
43.	C76	31.725
44.	C78	32.173
45.	C80	32.609
46.	C82	33.033
47.	C84	33.454
48.	C86	33.858
49.	C88	34.256
50.	C90	34.643
51.	C92	35.024
52.	C94	35.395
53.	C96	35.758
54.	C98	36.115
55.	C100	36.460
56.	C102	36.803
57.	C104	37.139
58.	C106	37.465

Injection
Column	MXT-1HT SimDist, 5 m, 0.53 mm ID, 0.10 µm (cat.# 70112)
Standard/Sample	Custom C5-C106 hydrocarbon standard
Diluent:	Carbon disulfide
Conc.:	1%
Inj. Vol.:	0.5 µL cold on-column
Temp. Program:	53 °C to 430 °C at 10 °C/min (hold 5 min)
Oven
Oven Temp.:	50 °C to 430 °C at 10 °C/min (hold 5 min)
Carrier Gas	He, constant flow
Flow Rate:	18 mL/min

Detector	FID @ 430 °C
Make-up Gas Flow Rate:	24 mL/min
Constant Column + Constant Make-up:	42 mL/min
Make-up Gas Type:	N₂
Data Rate:	20 Hz
Instrument	Shimadzu 2010 GC
