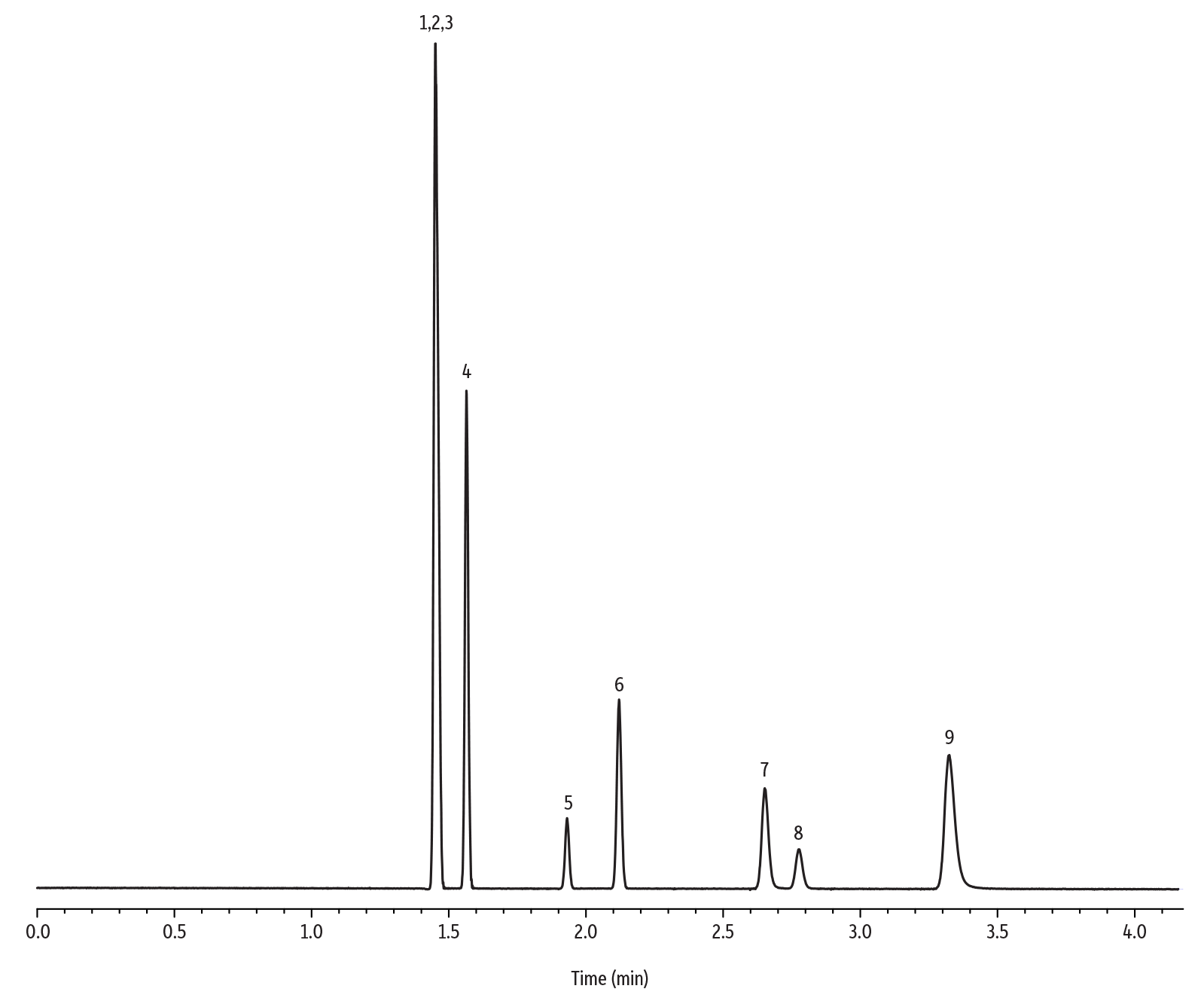

Permanent Gases and Nitrous Oxide on Rt-Q-BOND

GC_PC1345
PeakstR (min)
1.Nitrogen1.45
2.Oxygen1.45
3.Carbon monoxide1.45
4.Methane1.57
5.Carbon dioxide1.93
6.Nitrous oxide2.12
7.Ethene2.65
8.Ethyne2.78
9.Ethane3.32
ColumnRt-Q-BOND, 30 m, 0.53 mm ID, 20 µm (cat.# 19742)
Standard/Sample
Conc.: Varied (0.1-0.5% by volume)
Injection
Inj. Vol.:150 µL split (split ratio 10:1)
Liner:Topaz 2.0 mm ID straight inlet liner (cat.# 23313)
Inj. Temp.:200 °C
Oven
Oven Temp.:40 °C (hold 4 min)
Carrier GasHe, constant flow
Flow Rate:5.1 mL/min
DetectorTCD @ 200 °C
InstrumentAgilent 7890B GC
